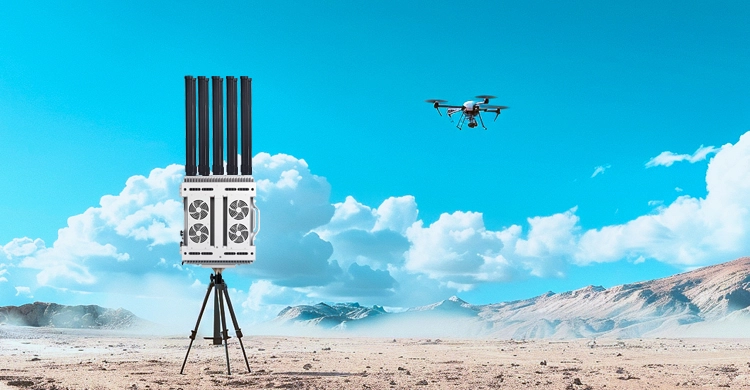

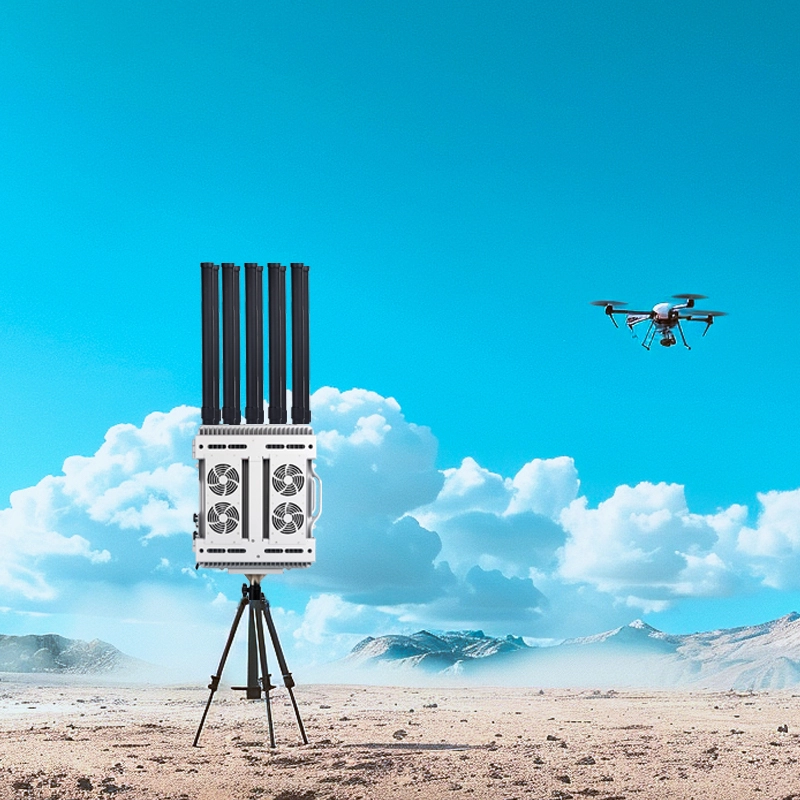

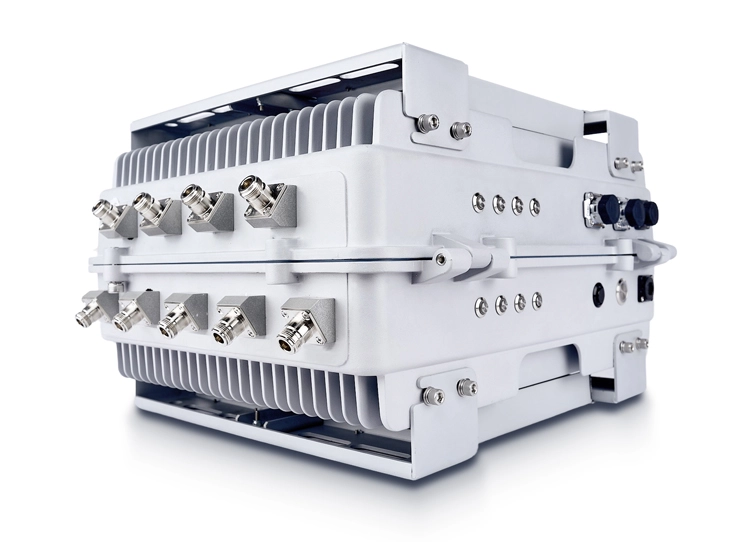

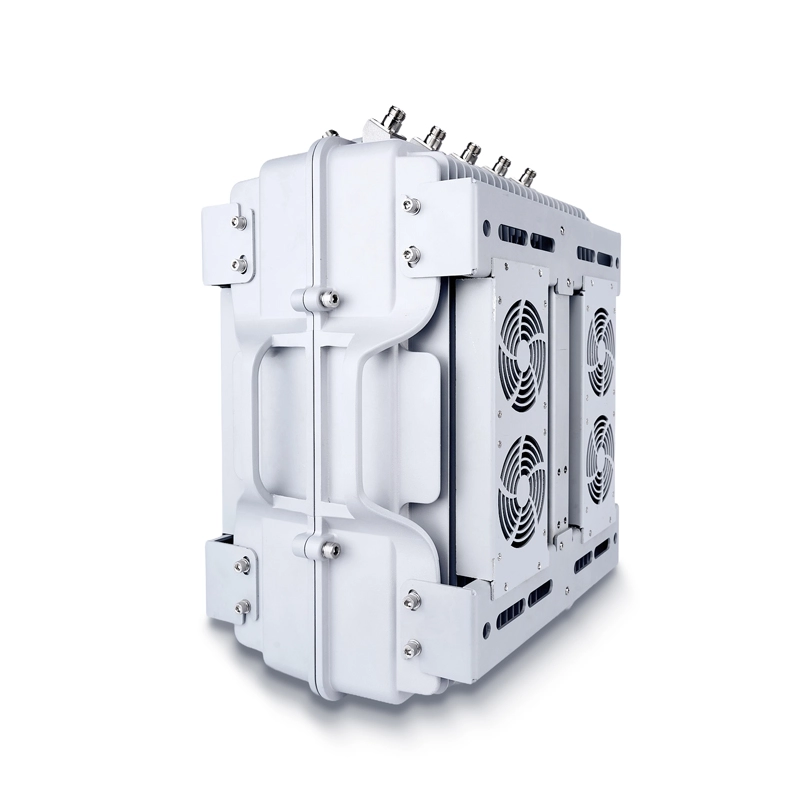

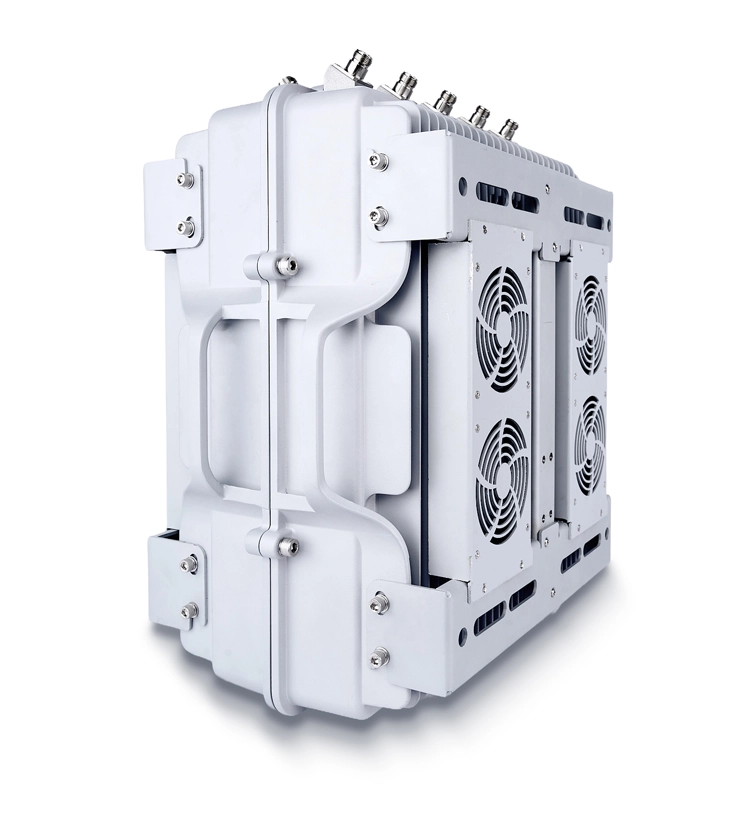

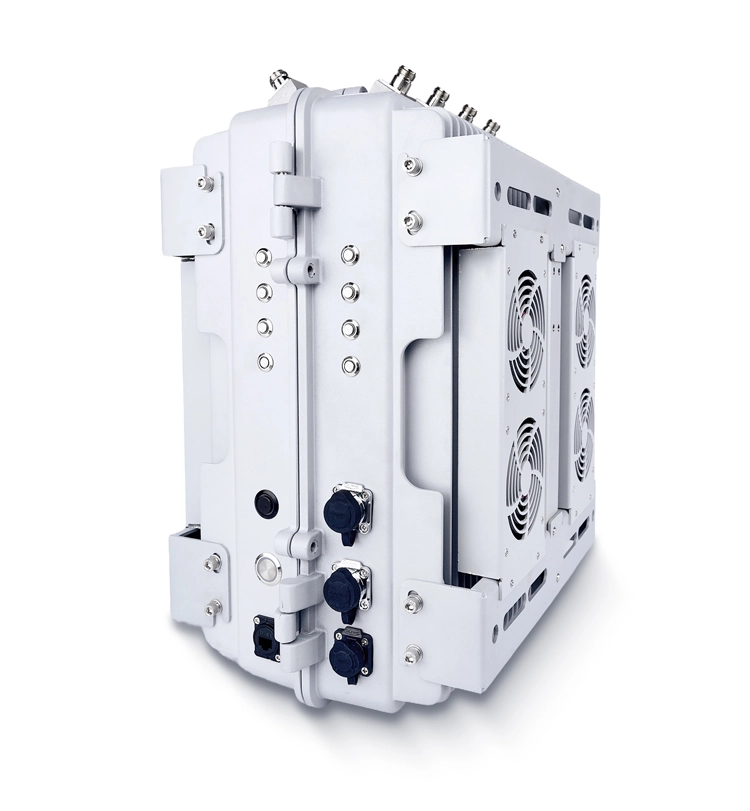

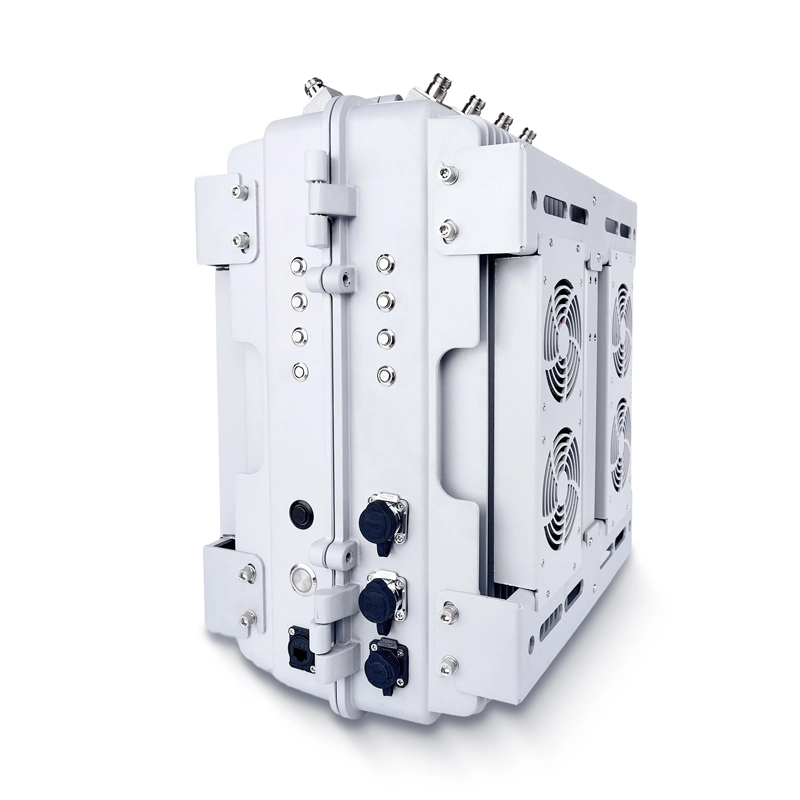

XINANKO X12 Anti Drone System

12 Band UAV FPV Drone Jammer Defence Device System Signal Jamming Blocking

Fixed anti-drone jammer system supports 24/7 operation with excellent heat dissipation. It features IP67 waterproofing, anti-explosion, drop resistance, wide coverage, and customizable frequencies and power levels.

XINANKO X12 Anti Drone System

Product Parameters
Commercial drones and the resulting need for effectivecountermeasures todrone intrusions. aims to help publicandprivatesector customers,where allowedby law, take proactivemeasures against airborne threats tosafety,security, andprivacy.

Features:
1. Integrated remote controller enables independent activation/deactivation of individual frequency channels.

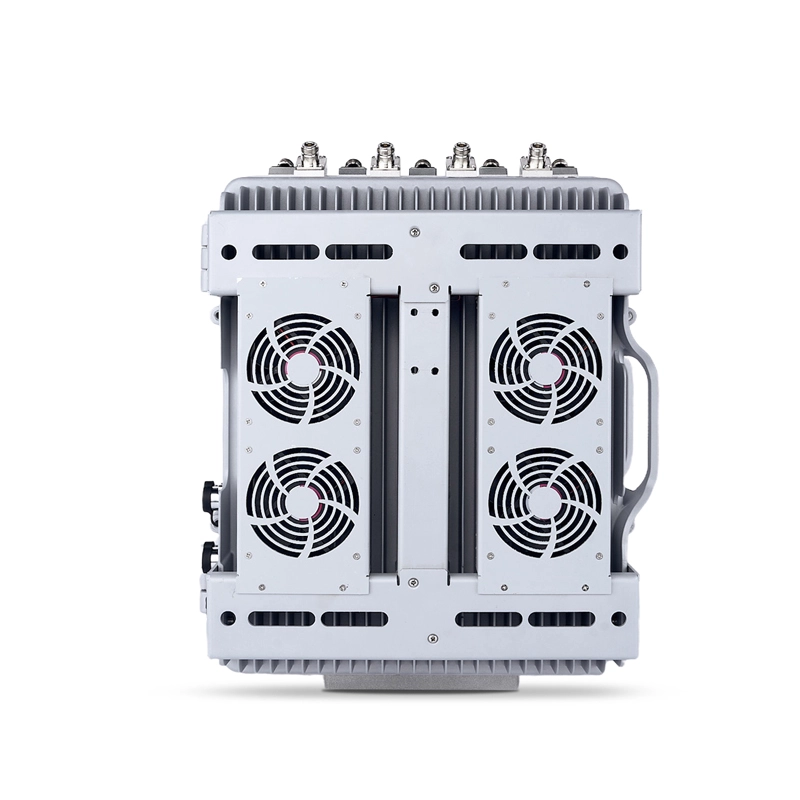

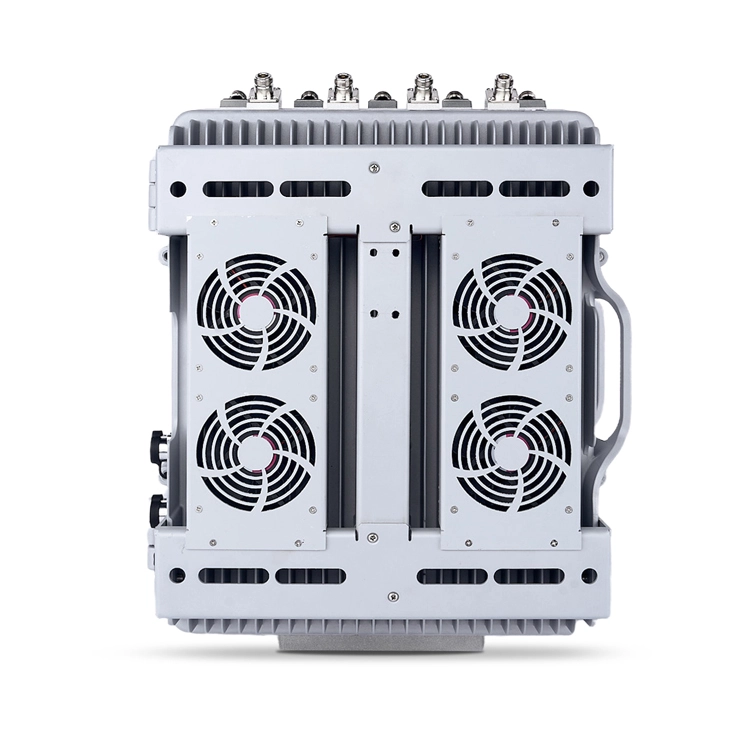

2. Good cooling system, work continuously
3. Stable capability, cost-effectivechoice
4. Output power 50w makehigh jamming range
5. IP67-rated waterproof/explosion-resistant housing with advanced thermal regulation architecture.

Or customize other cellular standard inthe world.

LoJack 173MHz, VHF,UHF, Walkie-talkie, interphone, 433MHz,315MHz,

868MHz, 915MHz, 450MHz,iDEN, CDMA, GSM, GPRS,DCS,PCS, AWS,WCDMA,UMTS,3G,4G,LTE 700,LTE 800,LTE 2300,LTE 2600, GPS,L1,GPSL2, Galileo, Compass, Glonass, WIFI,Bluetooth, Spycamera,WIMAX,UAV,Drone,1.2G,1.4G,1.5G GPS, 2.4G, 5.2G,5.8G,etc.

Applications:
Prisons, military, government, Oil and GasStorageFacilitiesand fields,
Churches, Theatres,News ConferenceRooms,Libraries,Museums, Courts,Border Patrol andDrugEnforcement, Customs, mosques,etc.

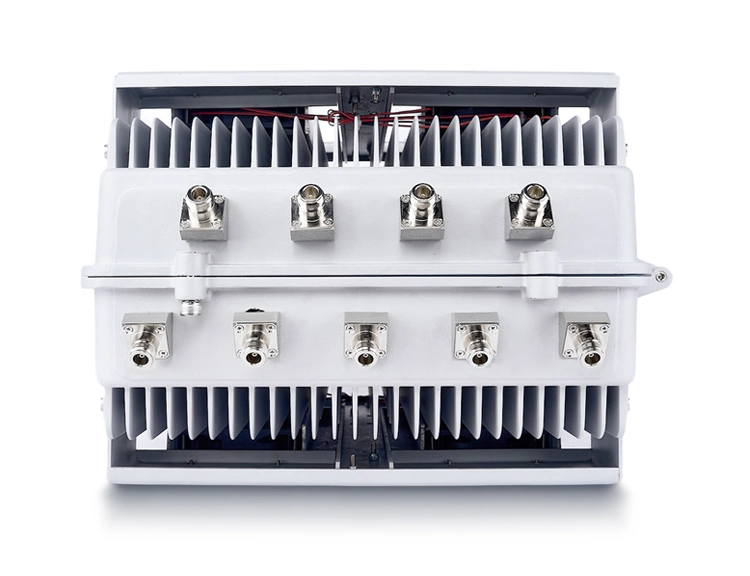

Outputport Frequency
CH1 410-490MHz
CH2 500-600MHz
CH3 600-700MHz
CH4 720-840MHz
CH5 830-940MHz
CH6 950-1050MHz
CH7 1170-1280MHz
CH8 1340-1450MHz
CH9 1550-1620MHz
CH10 2400-2500MHz
CH11 5150-5350MHz
CH12 5725-5850MHz
Total Power 600W
Average output power(+1dBm) 47dBm
Weight 22kg
Running temperature -25'C to +65'C
Dimension(mm) 447*357*203mm
Power supply AC110-240V,DC 24V-28V
