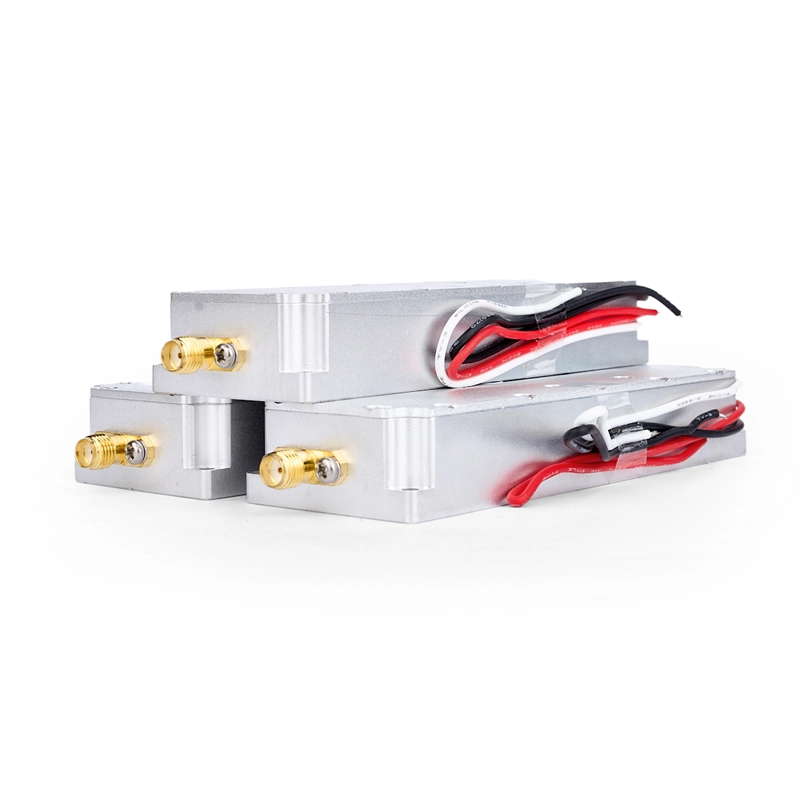

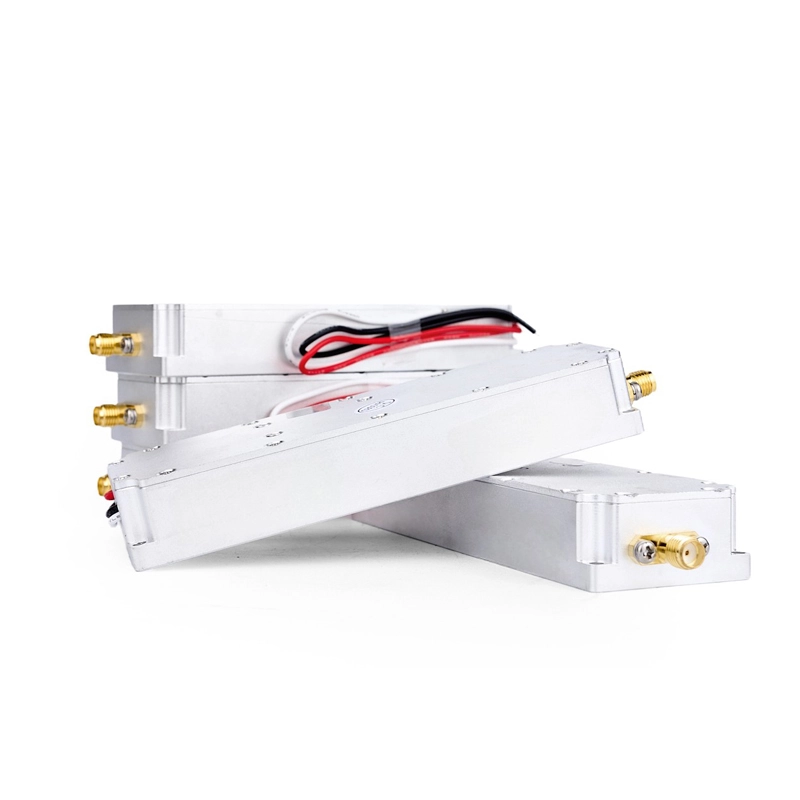

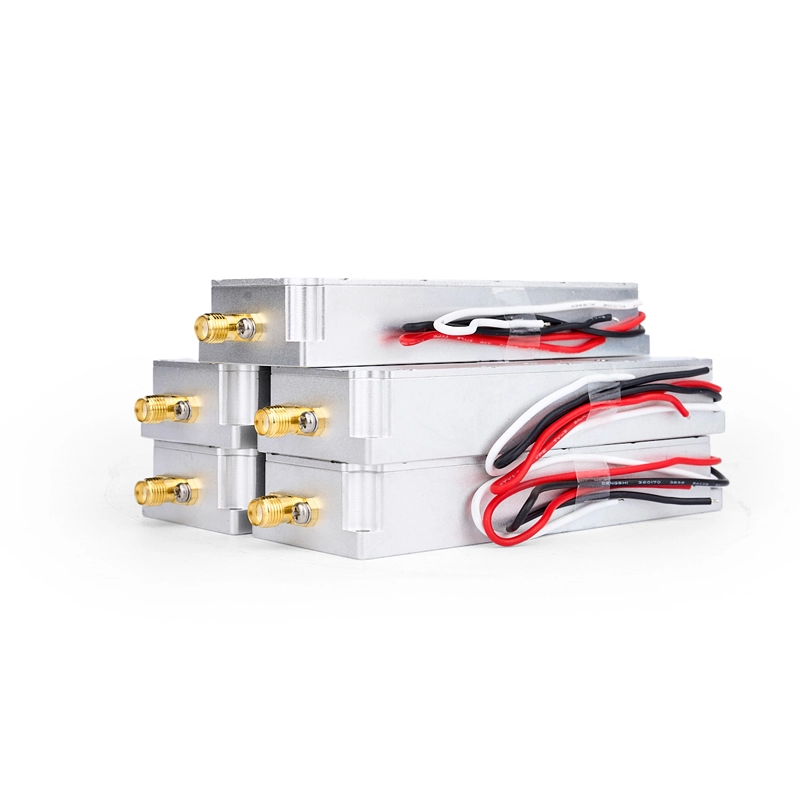

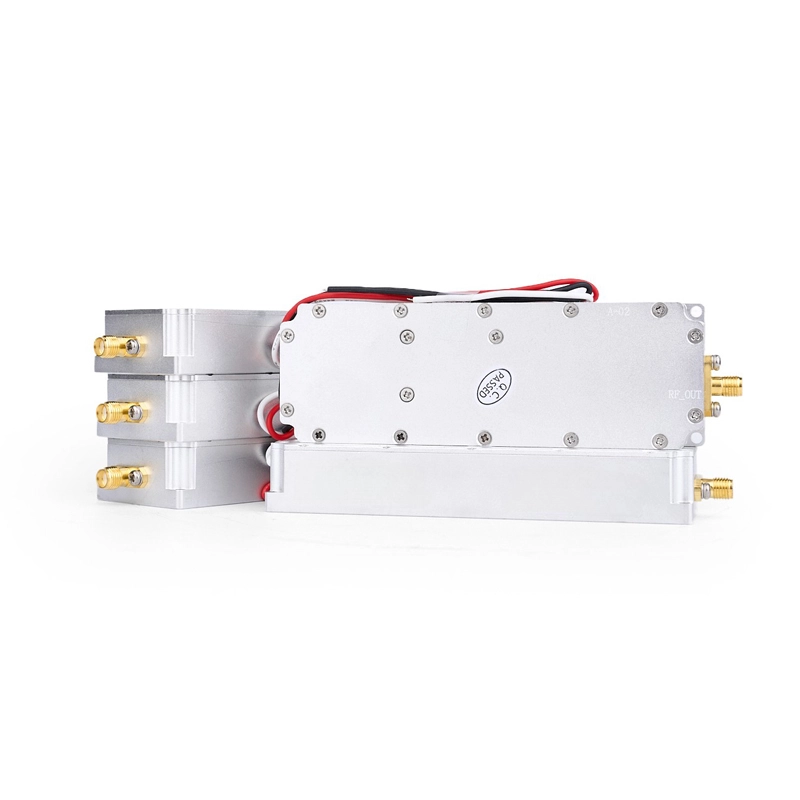

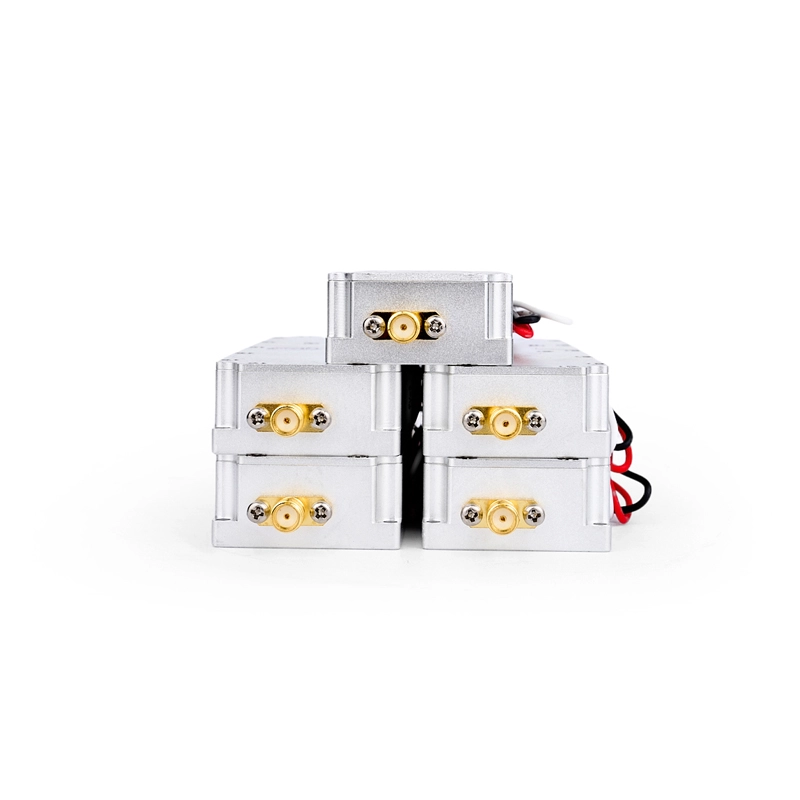

XINANKO 30W GaN 2400-2500MHz Anti Drone Module
30W 2400-2500MHz Anti Drone Module 400-6G Anti-Drone For GPS WIFI Jammer Module GaN Circulator Module Autel Mavic 3 Counter Device FPV Jamming
30W 2400-2500MHz Anti Drone Module 400-6G Anti-Drone For GPS WIFI Jammer Module GaN Circulator Module Autel Mavic 3 Counter Device FPV Jamming
XINANKO 30W GaN 2400-2500MHz Anti Drone Module
Main Components :
1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage
4, Tube Voltage 5, Adjustable GaN Voltage 6, GaN Voltage
7, Isolation protector
| Item name | Technical parameters |
| Working frequency |
2400-2500MHz (Customizable to any frequency) |
| Saturated output power | 45±1dBm |
| Gain | 45±2dB |
| In-band fluctuation | ≤2.0dB |
| Out-of-band spurious |
9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz |
| Input VSWR | ≤1.5 |
| Gain temperature stability | ≤±1.5dB |
| Working voltage | DC+28V |
| Working current | 45dBm@≤2.3A |
| Powersupplymonitoring interface |
Power supply: power line Red: power positive, black: power negative, white: power amplifier enabled |
| Output RF port | SMA |
| Dimensions | 111.7*37.3*19.5 |
